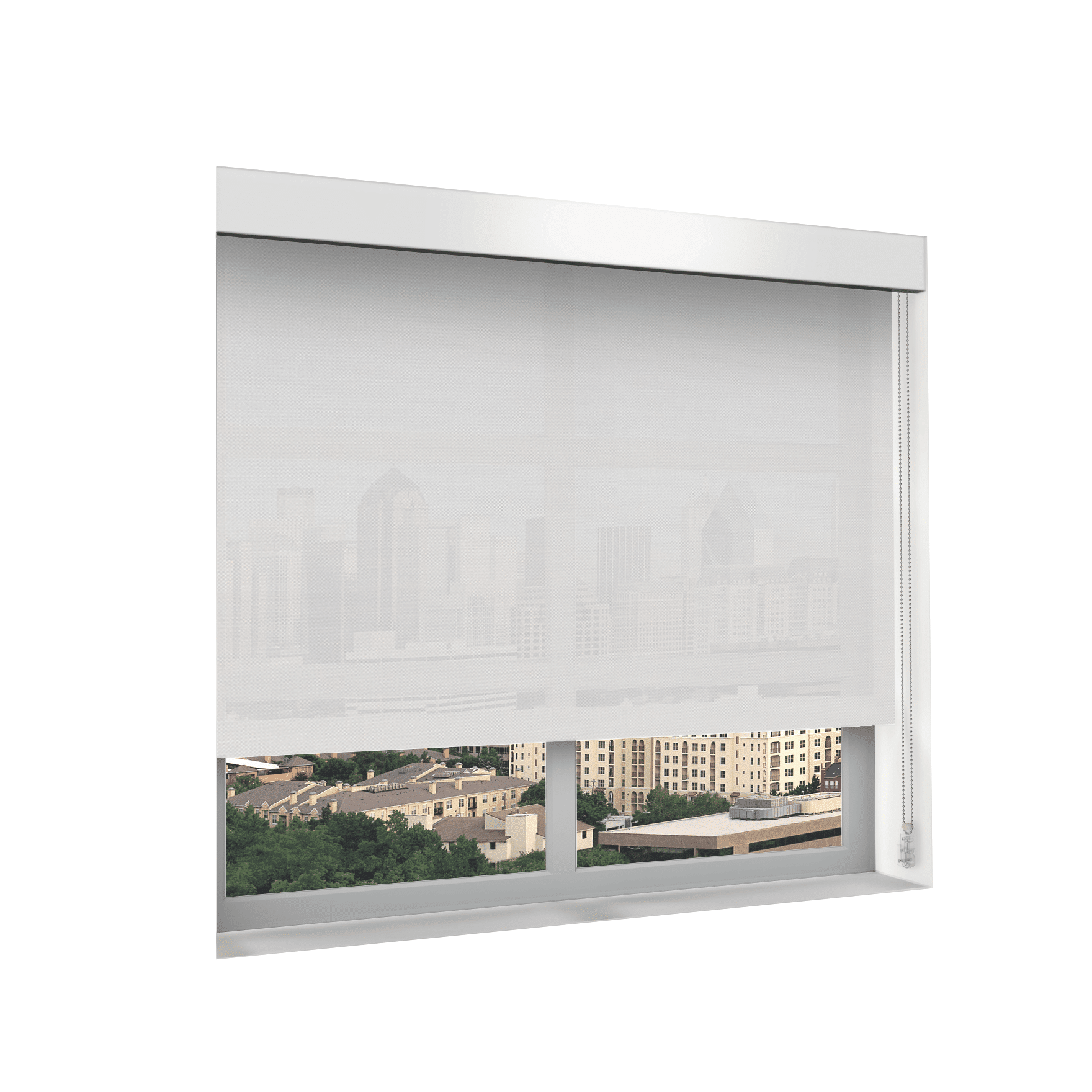

H100 SoloMount® Manual Clutch Shade

Log-in to build a quote

No account, no problem! You can create an account on the next page.

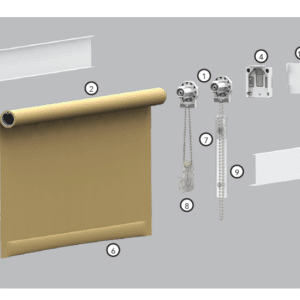

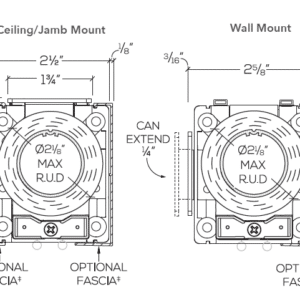

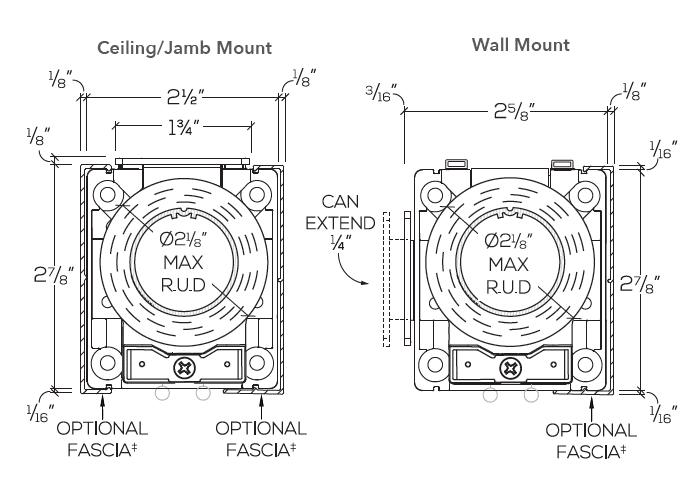

• Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments. Mounting flange is extendable for Wall Mount applications.
• Available with Front Fascia, Rear Fascia, or Both, SoloMount® is designed to accept fascia at the time of order or any point in the future.
• Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety, and can be Drive Right or Drive Left.
• Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.
• Available with our WT fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including Regular or Reverse Roll and various Hembar styles and Drive Chain Colors.
• Construction Documents for this system and others available at inpro-shades.com.

Technical Documents:

H100 Solomount TECHNICAL DATA SHEET

Additional Information:

• Wall Mount Angle (AH3-49) is available for applications requiring a wall-mounted shade with Rear Fascia. 3” x 3” x 1”
• Inpro offers multiple ways to tailor your shades such as various customization options and add-on accessories making each shade unique. Visit Shading Accessories to learn about all available options.
• Each Manual Clutch shading system is made to order with your choice of fabrics from Inpro WT Fabrics and/or trusted brands like Mermet®, or Phifer®. Visit our Fabrics section to browse our extensive collection of available fabrics.
• Every manual shading system leaves our facility complete with the necessary label, tag, and Child Safety Tension Device pre-attached to the chains. Visit Child Safety for more information about Inpro’s efforts to supply our installers and end-users with a product they can trust. Read More about Child Safety
• Supporting documents for this system and all of our products can be found in the Digital File Cabinet. (Update based on where they will find these moving forward)

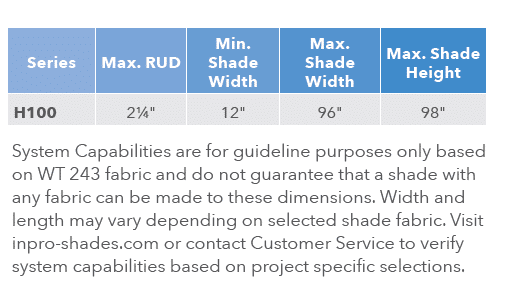

System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit WTShade.com or contact Customer Service to verify system capabilities based on project specific selections.

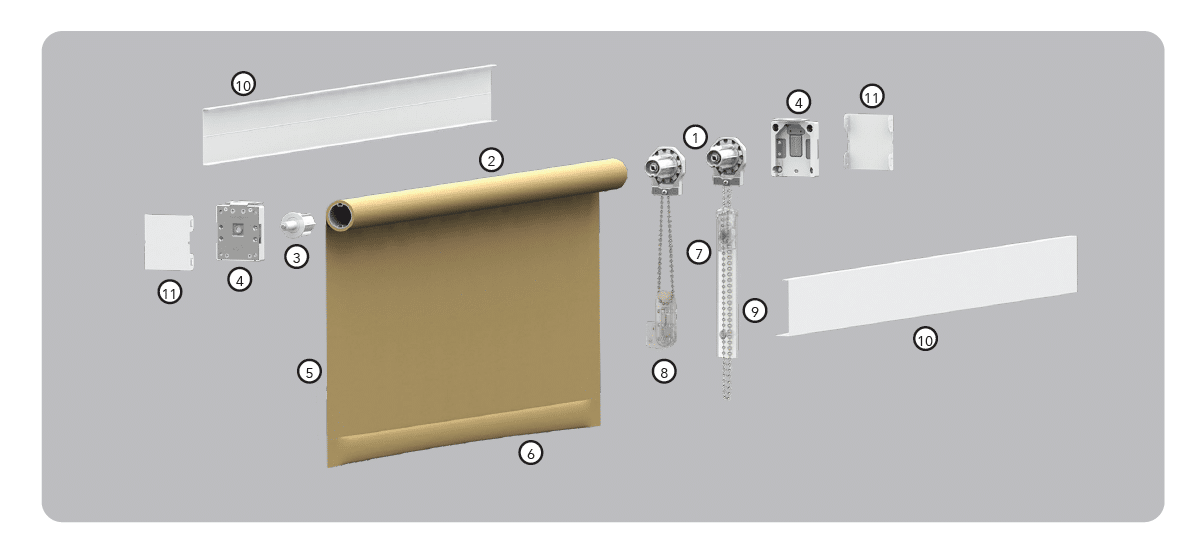

Product Attributes:

Safety Rating: ANSI/WCMA Compliant
Shade System: H100 SoloMount®
Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
Fascia: 3″ Front and/or Rear Fascia in five colors
Roll Type: Regular or Reverse Roll
Bracket: SoloMount® Brackets in White (-10) or Black (-90)
Operator: Clutch, Drive Right or Drive Left

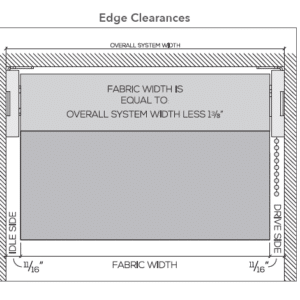

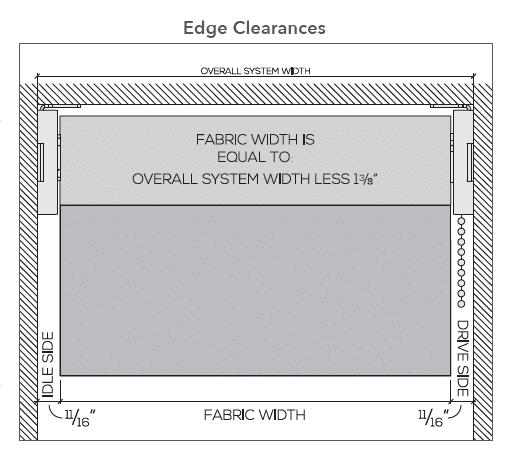

Width: 12″ min; 96″ max
Length: 98″ max
Shade Pocket: Optional; 5″ x 5″
Light Blocking Acc.: Side channel, Sill channel, or Light stop angle
Hembars: Sealed Hembar shown, alternate styles and colors available
Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
Chain Selection: Stainless Steel shown, alternate styles and colors available (ensure this matches image on page)
