Wrapped Frame Panel

Categories: Fixed Shades, Shading Systems, Specialty Systems

Wrapped Frame Panel

Log-in to build a quote

No account, no problem! You can create an account on the next page.

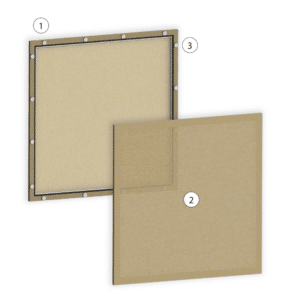

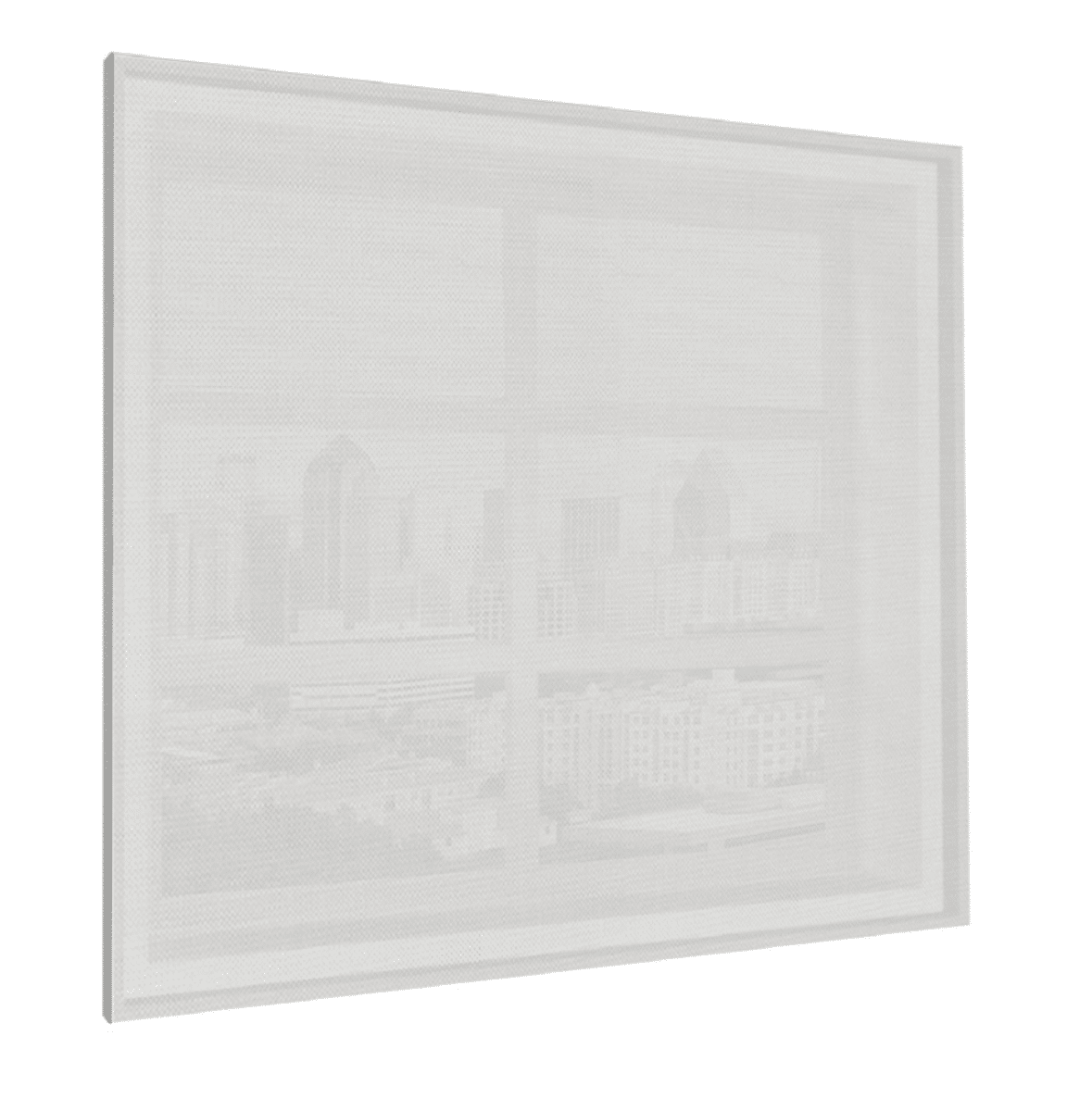

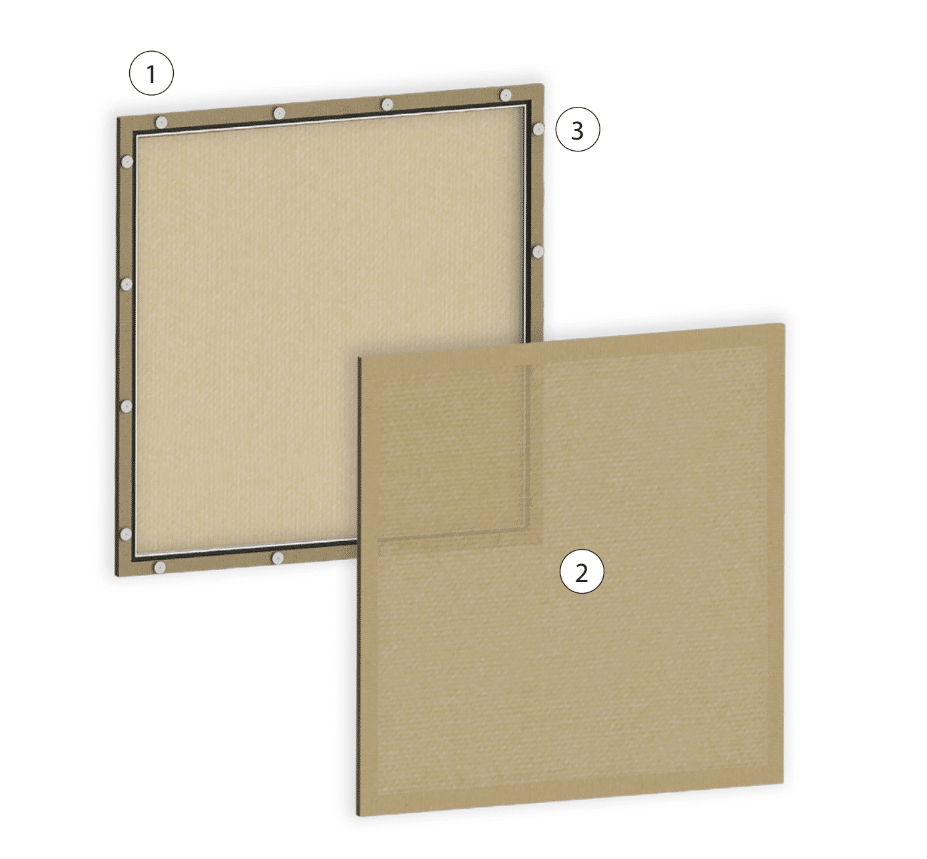

• A non-operable fabric panel comprised of your choice of fabric attached to an aluminum frame.
• Ideal for areas requiring semi-permanent sun protection or hard-to-reach windows.

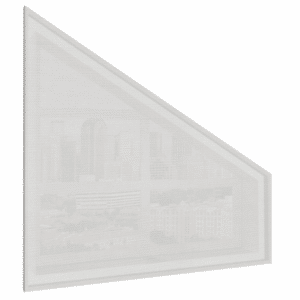

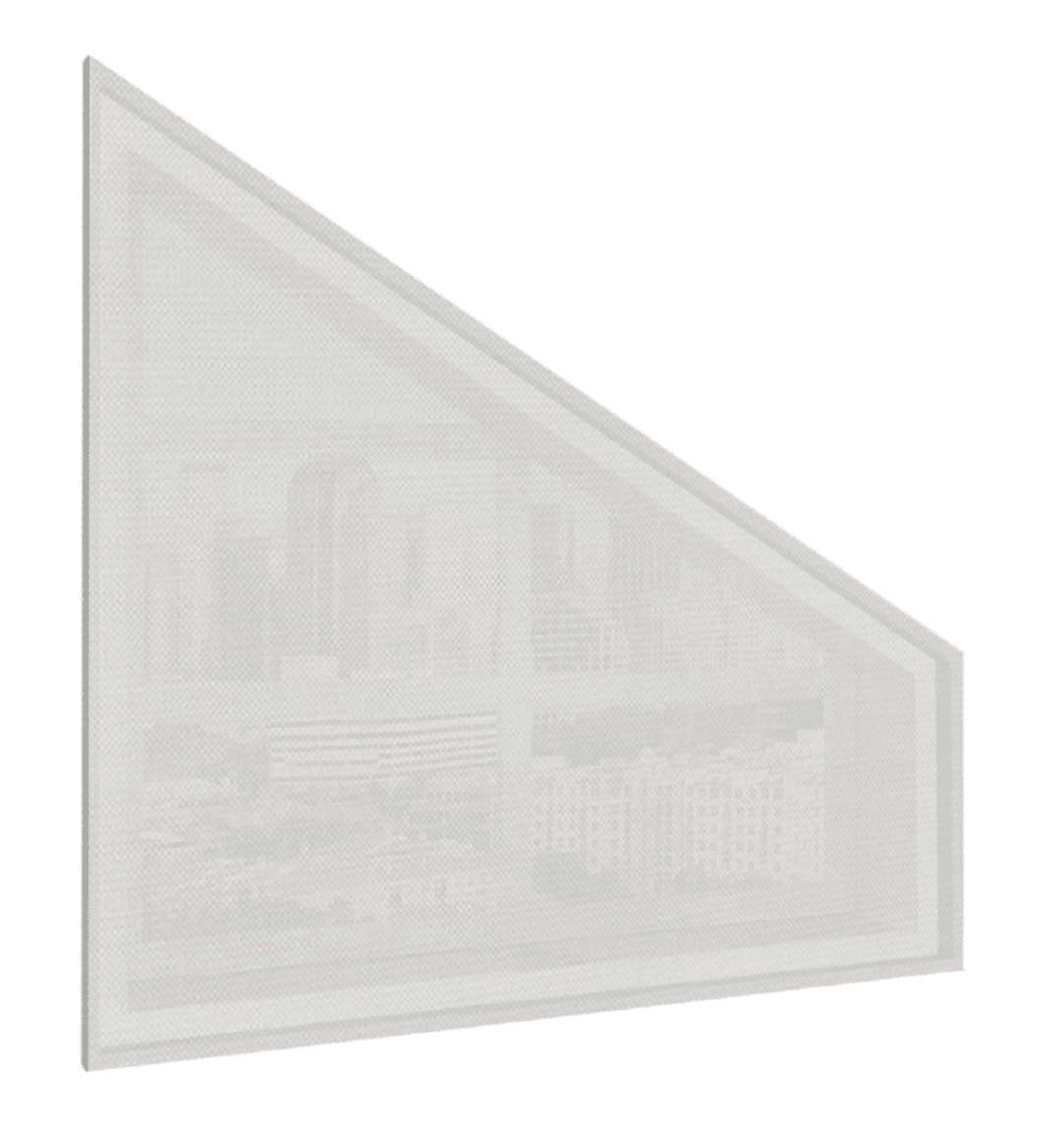

• Non-rectangular Custom Shapes available. Shape containing curvature requires a template. Ideal for arched and trapezoidal shaped windows.

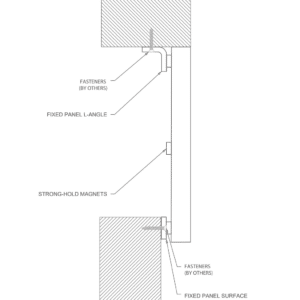

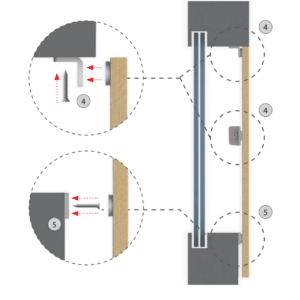

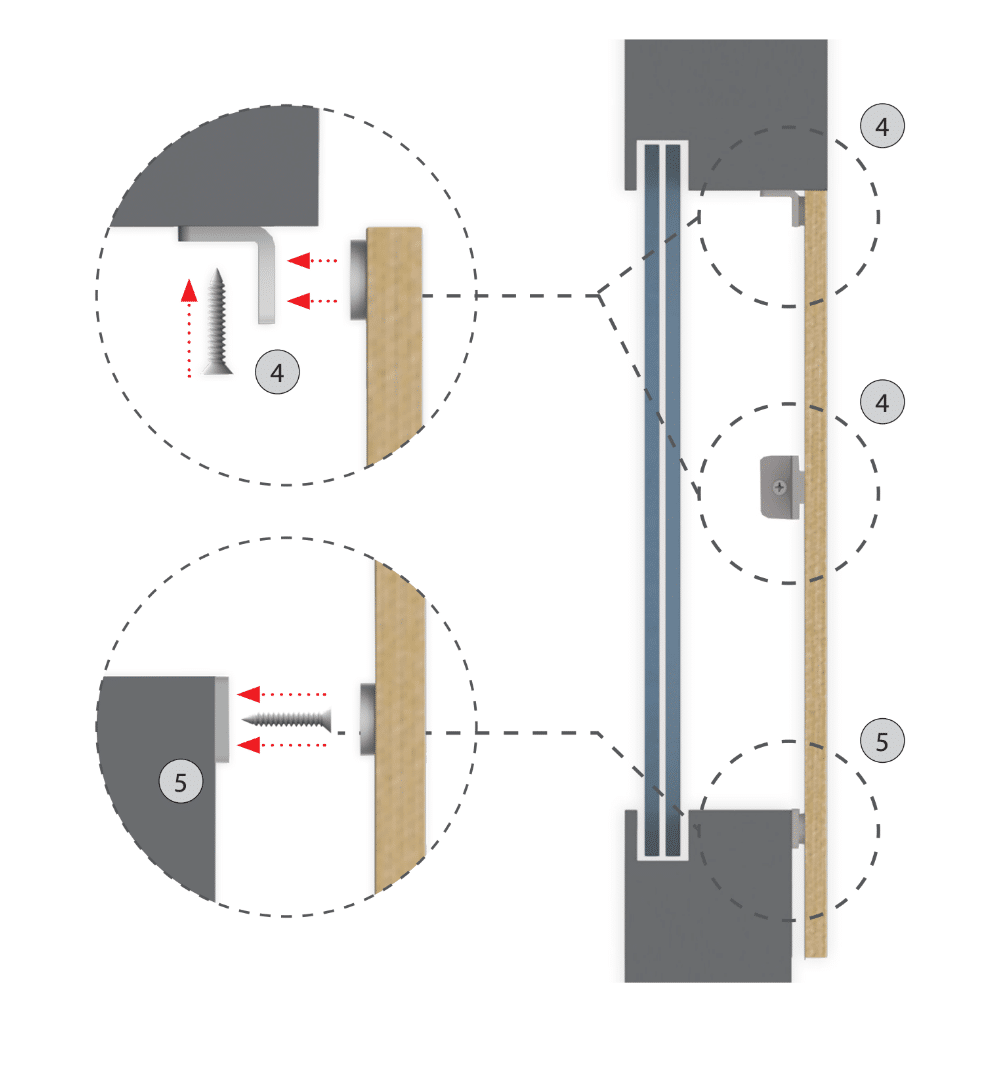

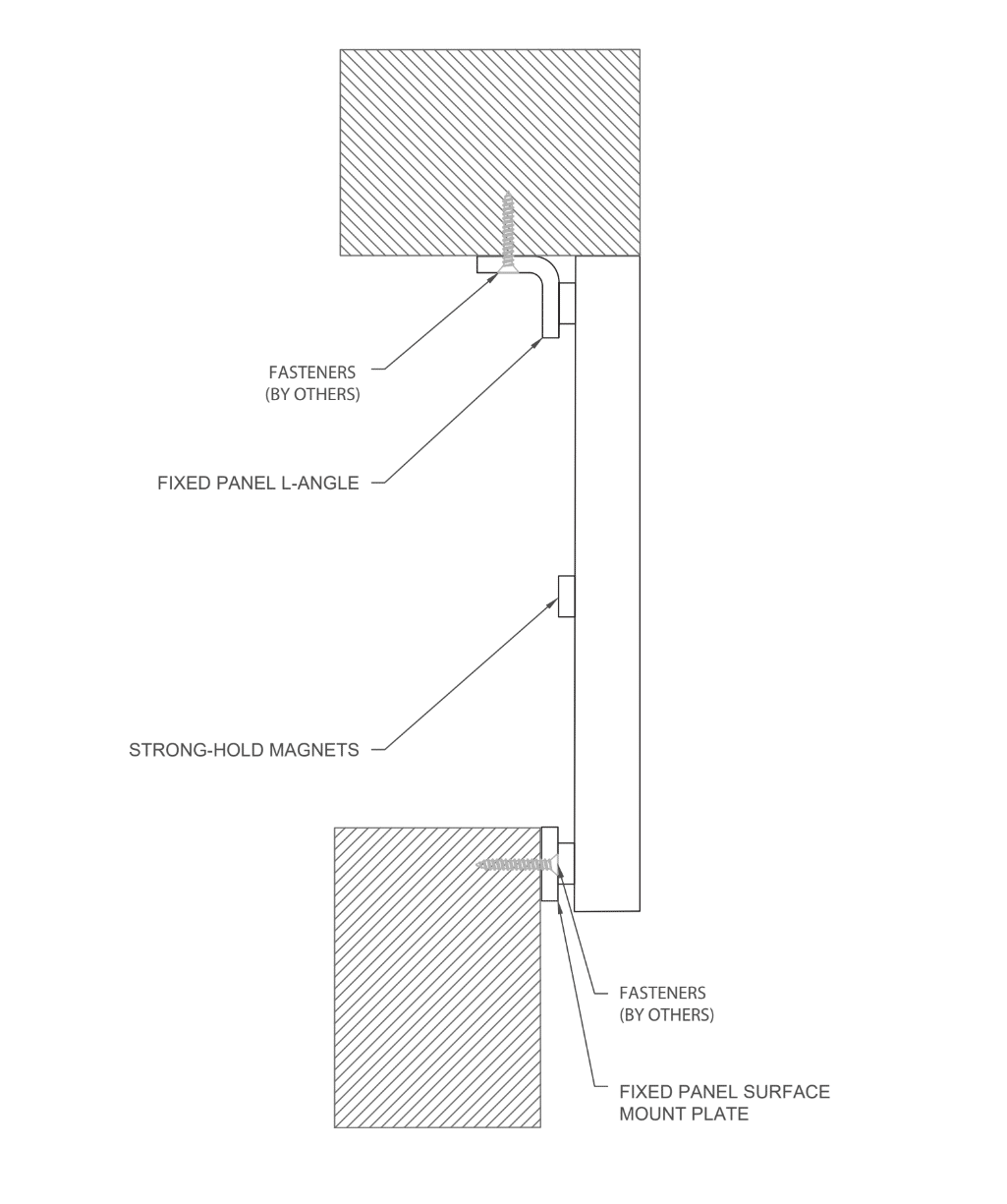

• Can be easily installed by attaching our Strong Hold Magnets to any magnetic surface. Magnets may be placed at a maximum distance of 24” apart, on center. Additional magnets may be added by request.
• Vertical installation only. Not recommended for horizontal or skylight windows.

Additional Information:

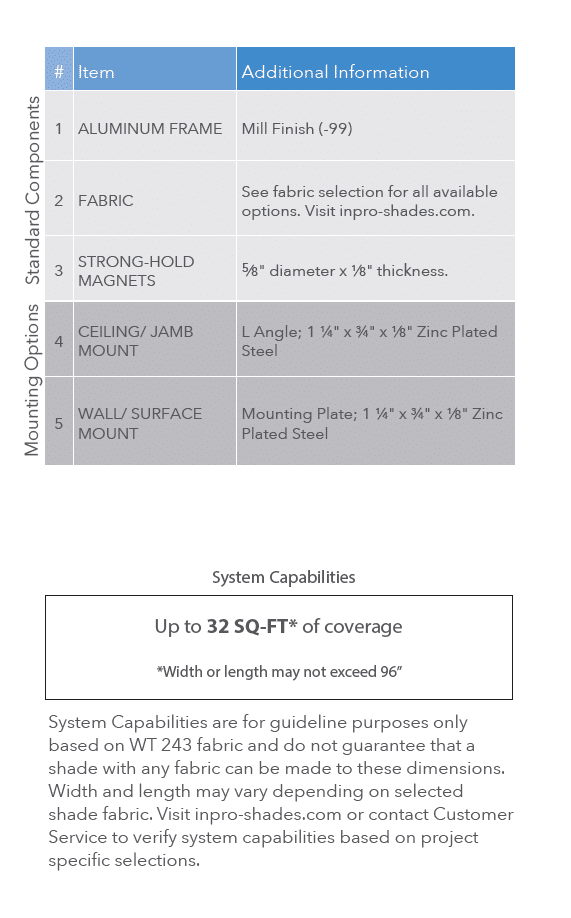

System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit WTShade.com or contact Customer Service to verify system capabilities based on project specific selections.

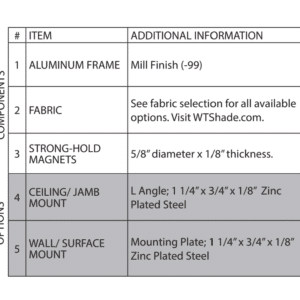

Product Attributes:

Material: Mill finish aluminum frame with selected fabric
Shade System: Wrapped Frame Panel
Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
Bracket: Magnetic
Light Blocking Acc.: Side channel, Sill channel, or Light stop angle
Width: 96″ max (up to 32 sq ft of coverage)
Length: 96″ max (up to 32 sq ft of coverage)

View Data Sheets
