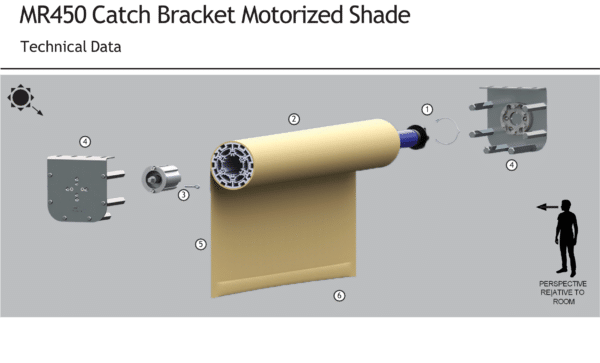

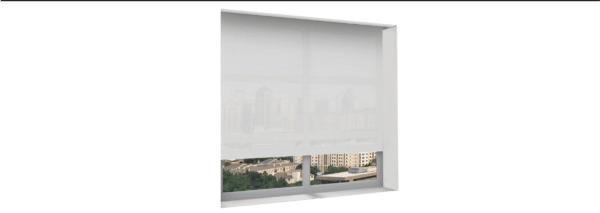

MR450 Catch Bracket Motorized Shade
• Catch Brackets feature safety posts for added safety of extra large or high bay applications.

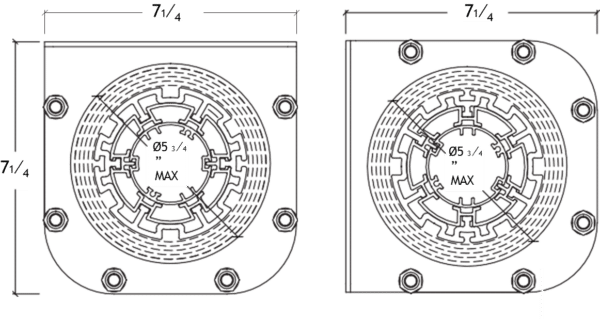

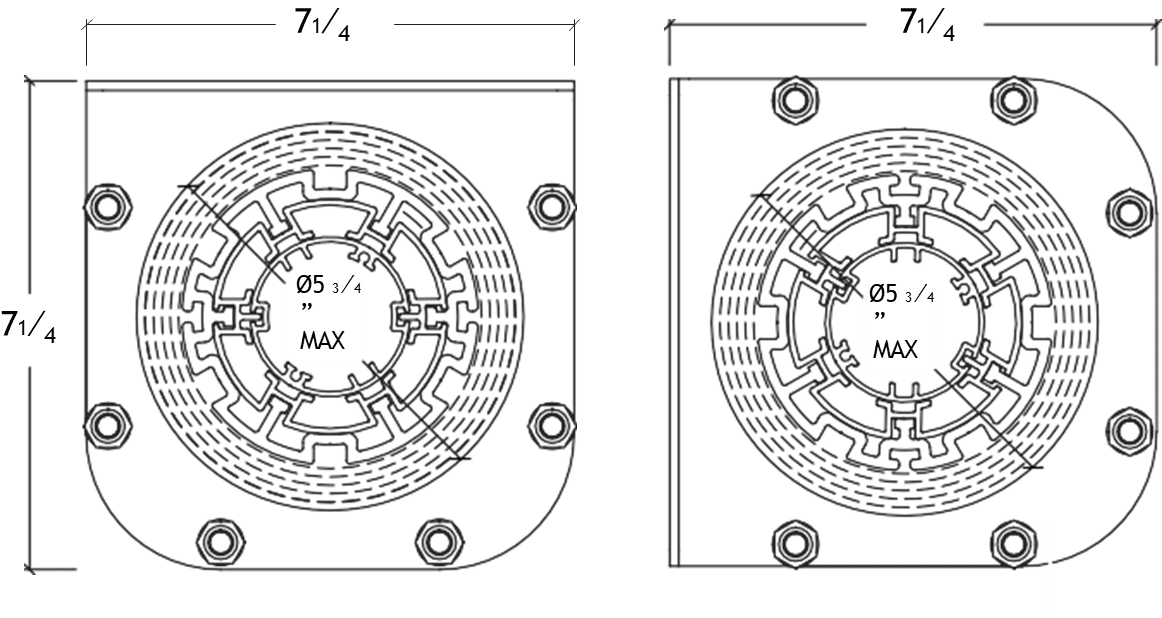

• Featuring our smallest profile Bracket for installing in tight spaces and pockets when not using fascia. Accommodates Ceiling or Wall mounting with easy, on-the-fly adjustments.
• Regular and Reverse Roll available.
• See Motor Reference Guide for all compatible motor options. Motors may be Drive Right or Drive Left, Regular and Reverse Roll available.
• Motorized Shades require a Motor Control in order for the shade to be operated (sold separately). See Communication Guides for Motor Control information.
• Available with our WT fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including various Hembar styles.
• Construction Documents for this system and others available at inpro-shades.com.
Additional Information:

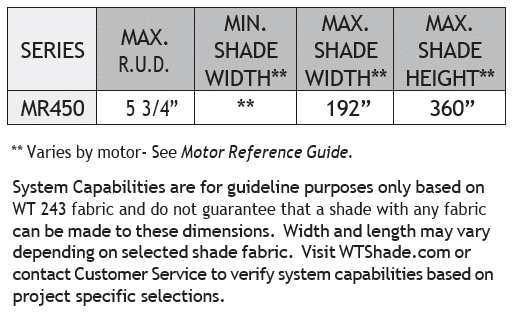

System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit inpro-shades.com or contact Customer Service to verify system capabilities based on project specific selections.
Product Attributes:
Certifications: Third party certified to meet WCMA Best for Kids Program Eligibility.
Safety Rating: WCMA Best for Kids

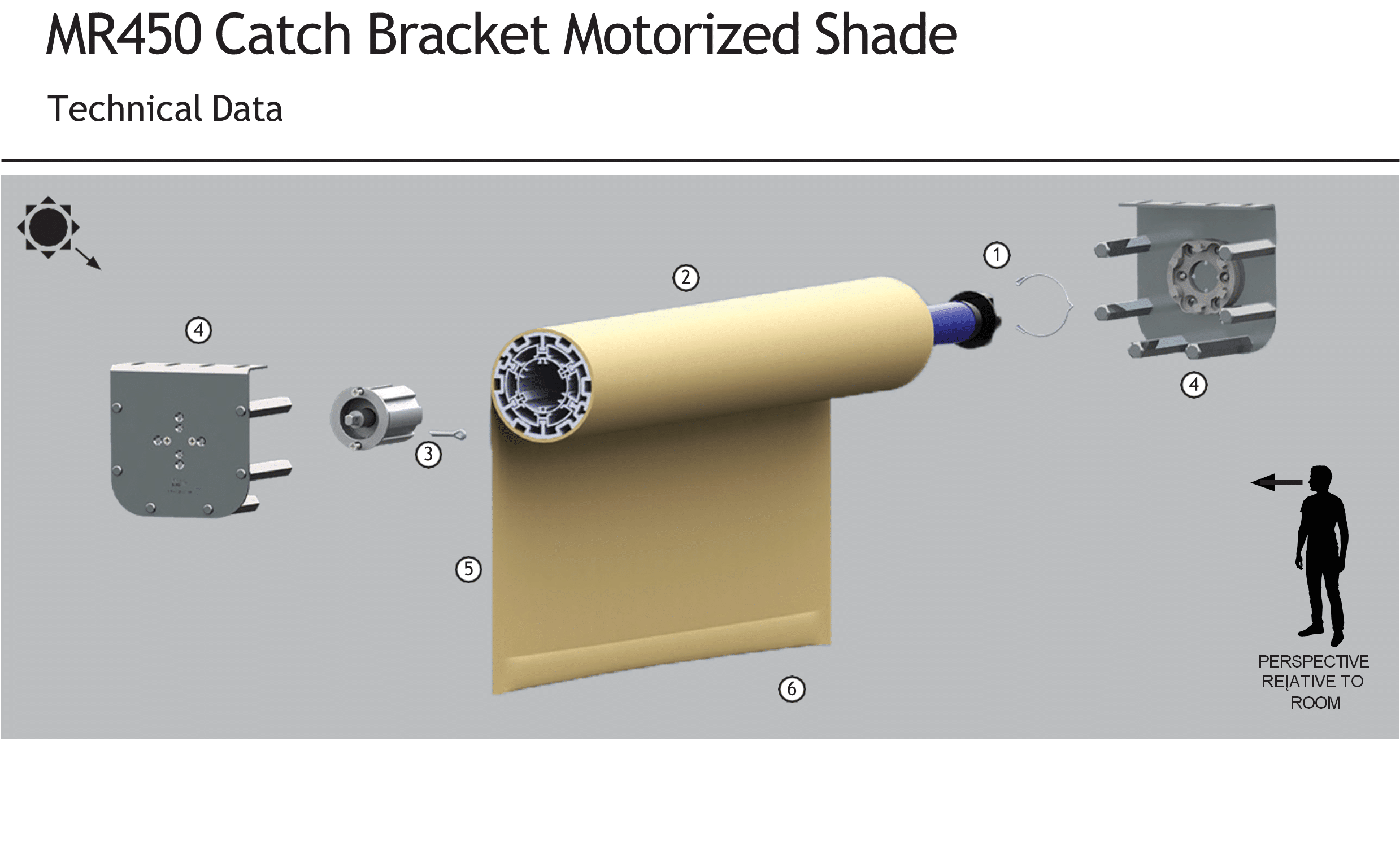

Shade System: MR450 Catch Bracket
Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
Roll Type: Regular or Reverse Roll
Bracket: Catch Brackets with Safety Posts
Operator: See Motor Reference Guide for all compatible motor options
Motorized Control: See Communication Guides for available control options

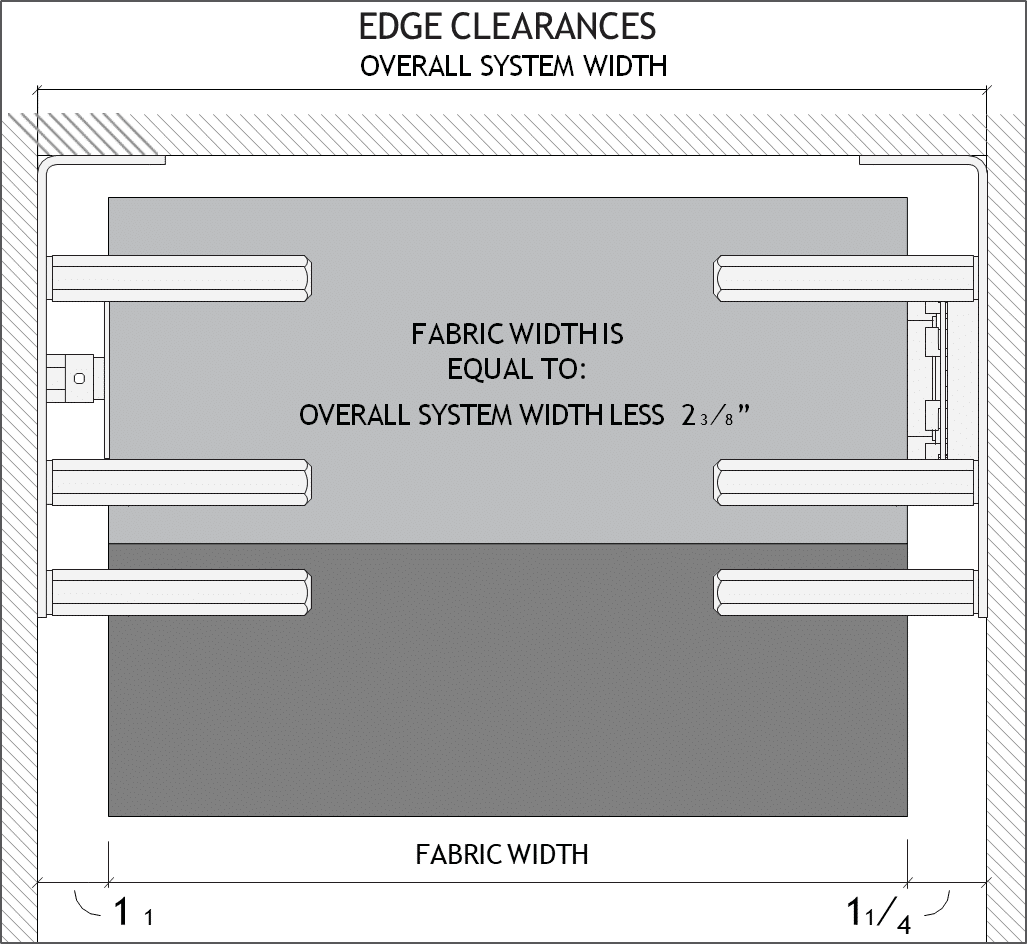

Width: Min. width varies by motor; 192″ max
Length: 360″ max
Shade Pocket: Optional; Closure Mount and Bottom Closure for site built pockets
Light Blocking Acc.: Side channel, Sill channel, or Light stop angle
Hembars: Sealed Hembar shown, alternate styles and colors available
