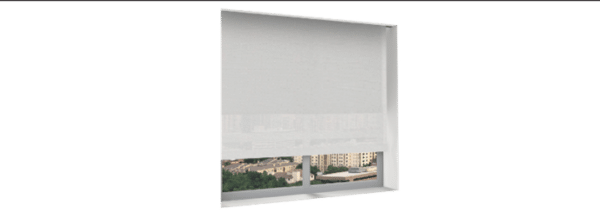

MR250 Pocket Dual Motorized Shade
• Specially engineered to fit inside our CP69 and CP69TS Ceiling Pockets.

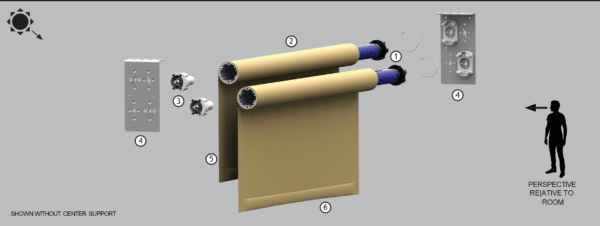

• Dual Bracket shades accommodates two independently operated shades hung staggered, one on top of the other, on a single bracket.
• Available with Front Fascia, Rear Fascia or Both. SoloMount® is designed to accept fascia at the time of order or at any point in the future.
• See Motor Reference Guide for all compatible motor options. Motors may be Drive Right or Drive Left, Regular and Reverse Roll available.
• Motorized Shades require a Motor Control in order for the shade (sold separately). See Communication Guides for Motor Control information.
• Available with our WT fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including various Hembar styles.
• Construction Documents for this system and others available at inpro-shades.com.
Additional Information:

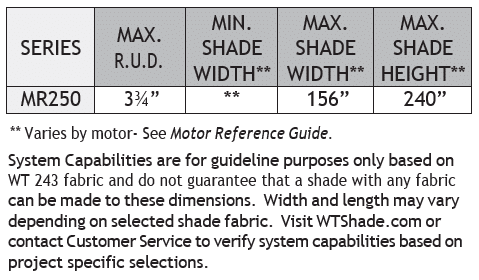

System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit inpro-shades.com or contact Customer Service to verify system capabilities based on project specific selections.
Optional: CENTER SUPPORT (INCLUDES CENTER SUPPORT BRACKET, TANGS, AND FORKS) Coupled option available up to 6 bands. Can be Ceiling or Wall Mounted. Drive Right or Drive Left.
Product Attributes:
Certifications: Third party certified to meet WCMA Best for Kids Program Eligibility.
Safety Rating: WCMA Best for Kids
Shade System: MR250 Pocket Dual
Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
Roll Type: Regular or Reverse Roll

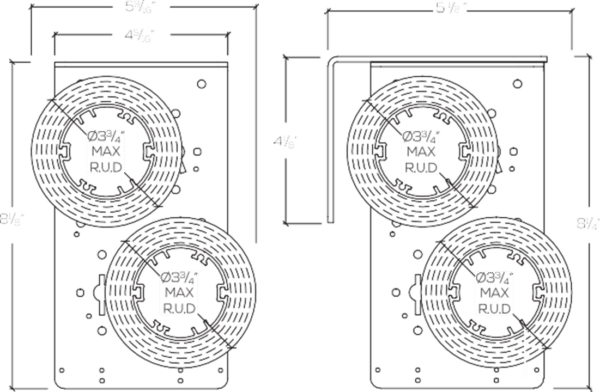

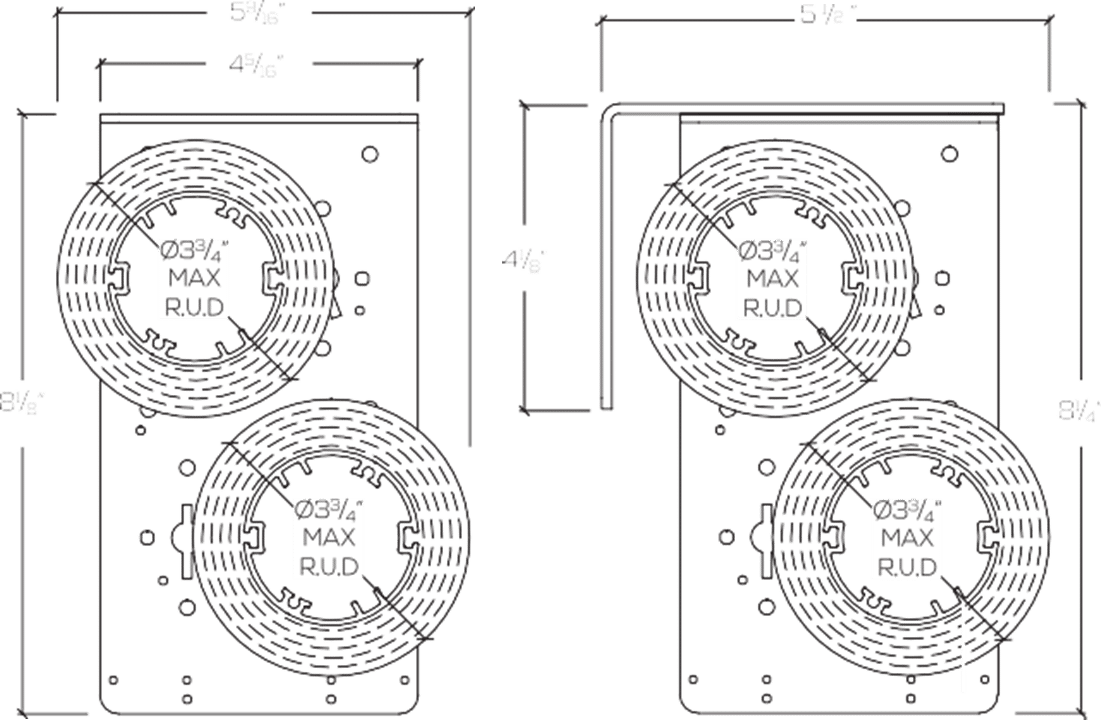

Bracket: Pocket Brackets
Operator: See Motor Reference Guide for all compatible motor options
Motorized Control: See Communication Guides for available control options

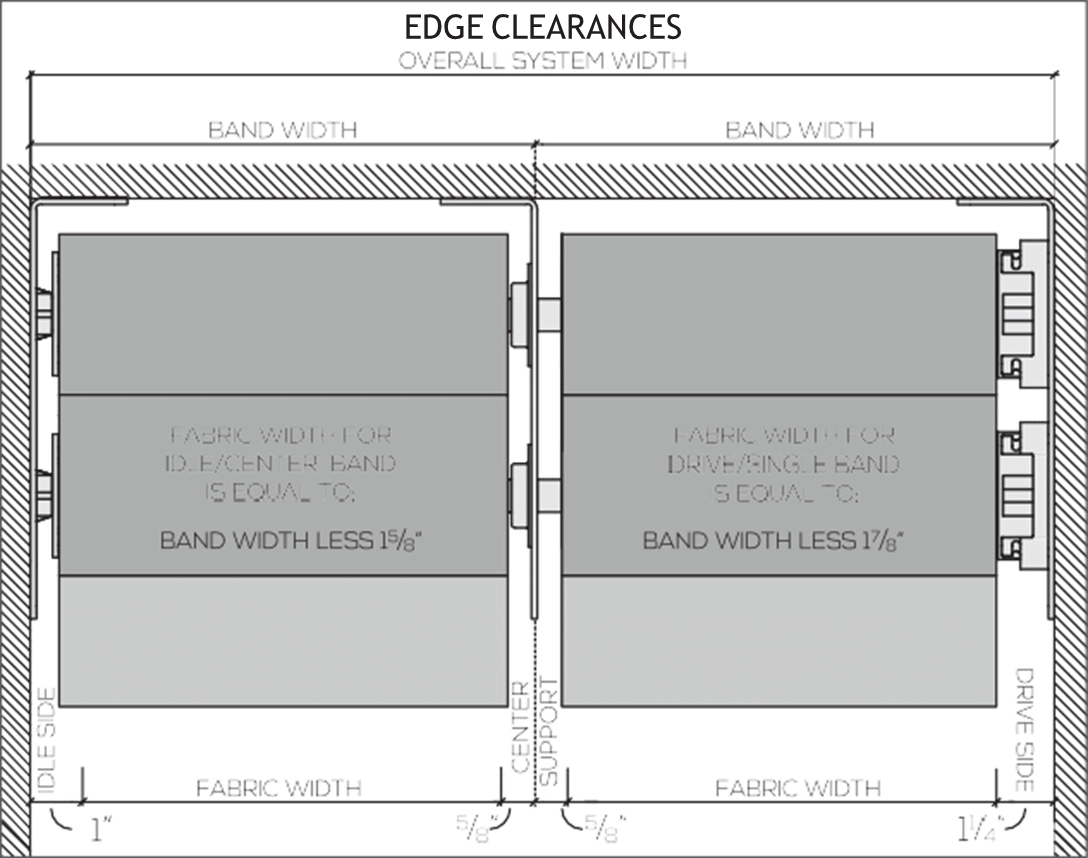

Width: Min. width varies by motor; 156″ max
Length: 240″ max
Shade Pocket: Optional; 6″ x 9″
Light Blocking Acc.: Side channel, Sill channel, or Light stop angle
Hembars: Sealed Hembar shown, alternate styles and colors available
