MR150 SoloMount® Dual Motorized Shade

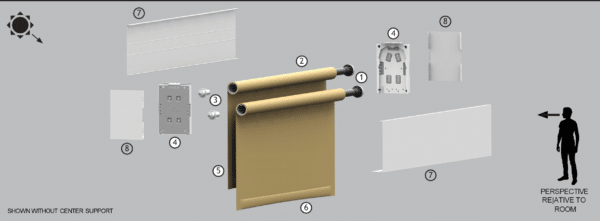

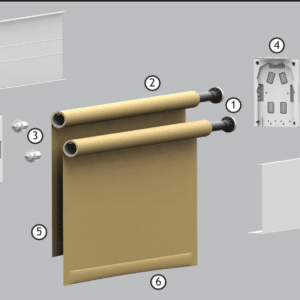

• Dual shades can be installed in two ways: staggered on a dual bracket; or tandem, hung one in front of the other using individual brackets.

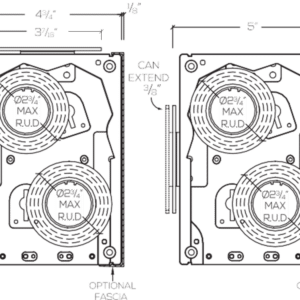

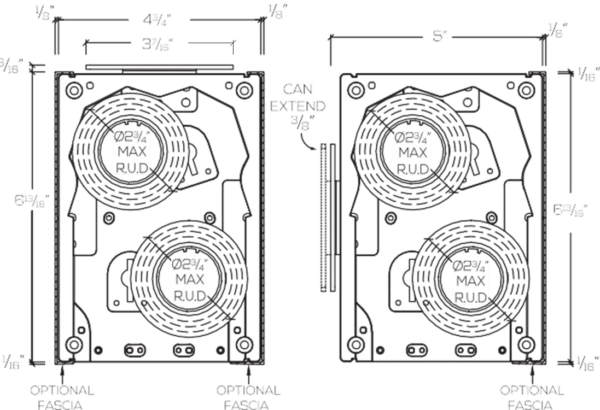

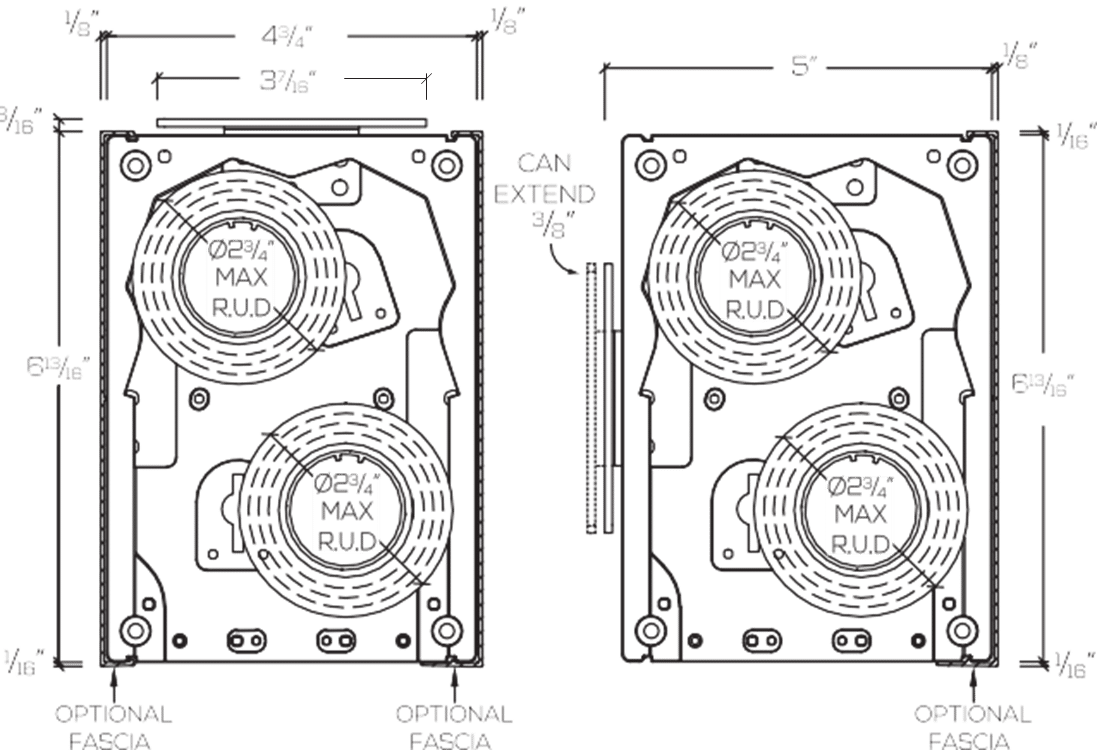

• Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments. Mounting flange is extendable for Wall Mount applications.
• Available with Front Fascia, Rear Fascia or Both. SoloMount® is designed to accept fascia at the time of order or at any point in the future.
• See Motor Reference Guide for all compatible motor options. Motors may be Drive Right or Drive Left, Regular and Reverse Roll available.
• Motorized Shades require a Motor Control in order for the shade (sold separately). See Communication Guides for Motor Control information.
• Available with our WT fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including various Hembar styles.
• Construction Documents for this system and others available at inpro-shades.com.
Additional Information:
System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric. Visit inpro-shades.com or contact Customer Service to verify system capabilities based on project specific selections.

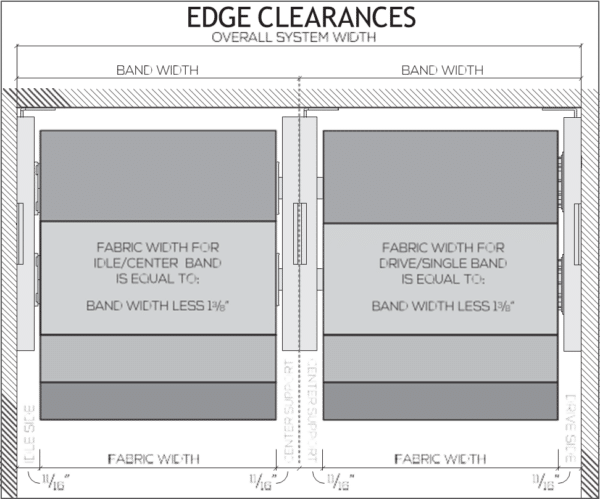

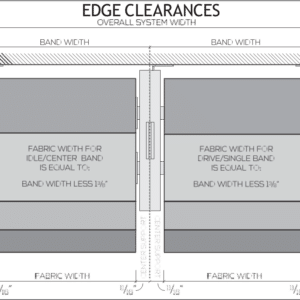

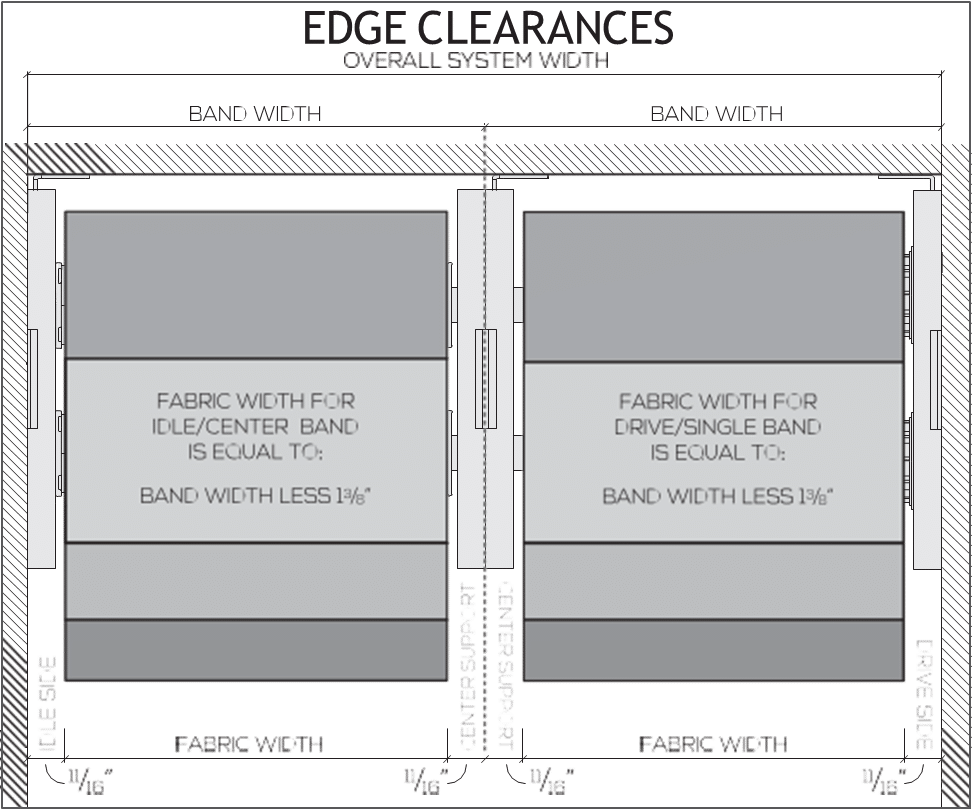

Optional: CENTER SUPPORT (INCLUDES CENTER SUPPORT BRACKET, TANGS, AND FORKS) Coupled option available up to 3 bands. Can be Ceiling or Wall Mounted. Drive Right or Drive Left.
Product Attributes:
Certifications: Third party certified to meet WCMA Best for Kids Program Eligibility.
Safety Rating: WCMA Best for Kids
Fabric Palette: WT Shade Fabrics
Shade System: MR150 SoloMount® Dual
Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
Fascia: 7″ Front and/or Rear Fascia in five colors
Roll Type: Regular or Reverse Roll
Bracket: SoloMount® Brackets in White (-10) or Black (-90)
Operator: See Motor Reference Guide for all compatible motor options
Motorized Control: See Communication Guides for available control options

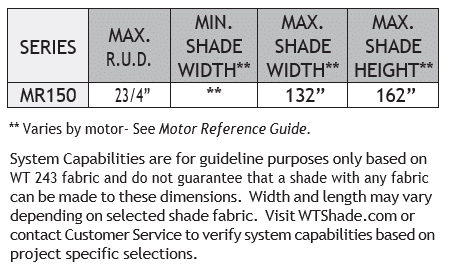

Width: Min. width varies by motor; 132″ max
Length: 162″ max
Shade Pocket: Optional; 5″ x 5″
Light Blocking Acc.: Side channel, Sill channel, or Light stop angle
Hembars: External hembar with clear handle
