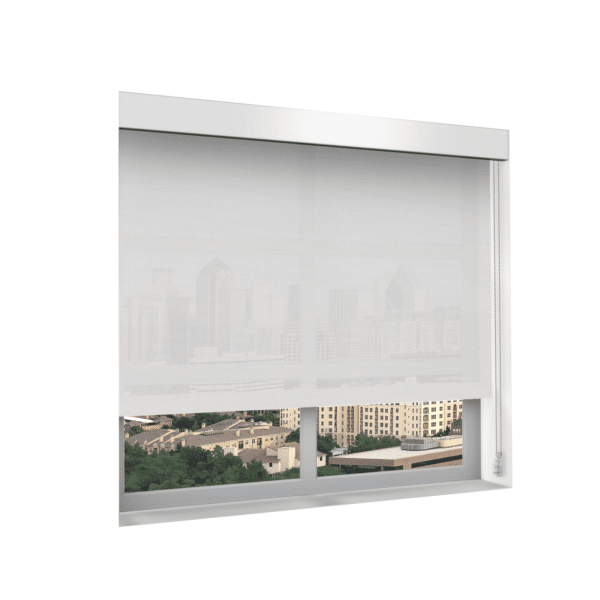

    H200 SoloMount® Manual Clutch Shade

    Dealer Log-In to Build Quote

    No account, no problem! You can create an account on the next page.

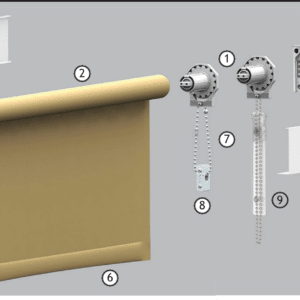

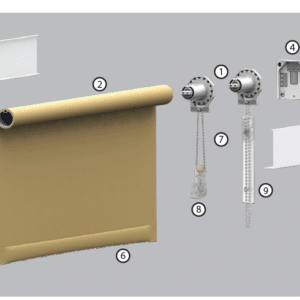

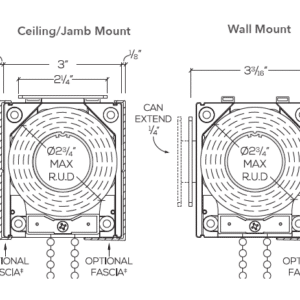

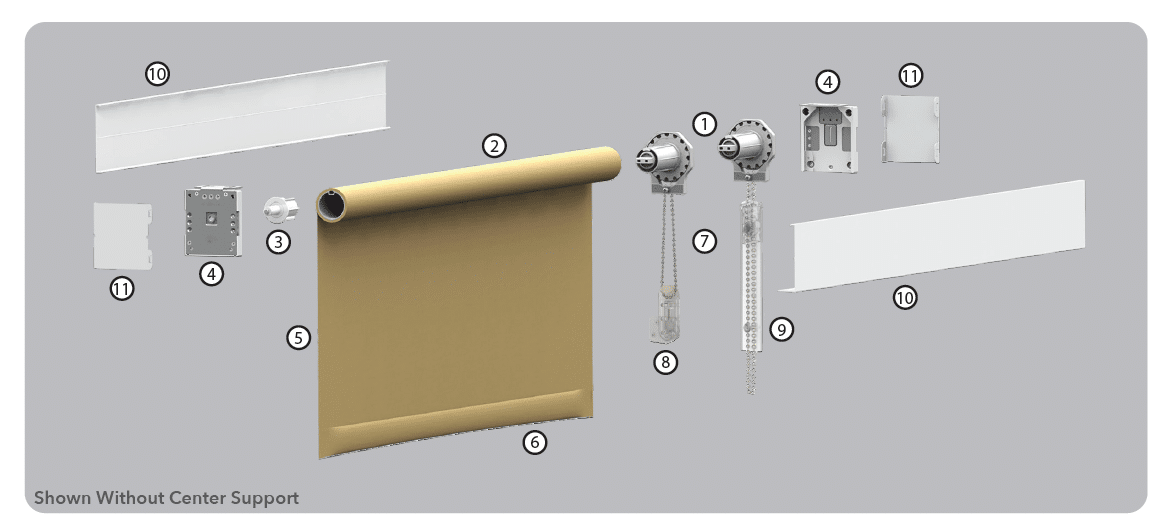

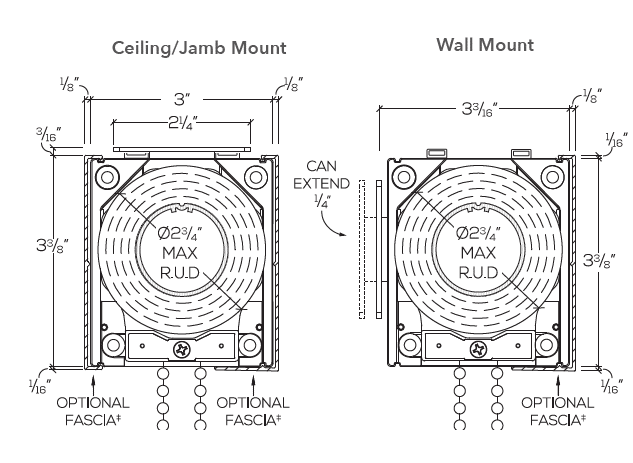

    • Featuring our proprietary, all-in-one SoloMount® Brackets: Ceiling, Wall or Jamb mount capable allowing easy, on-the-fly adjustments. Mounting flange is extendable for Wall Mount applications.
    • Available with Front Fascia, Rear Fascia, or Both, SoloMount® is designed to accept fascia at the time of order or any point in the future.
    • Clutches feature an integrated stainless steel reinforced Chain Diverter and Set Screw for maximum stability, durability and added safety, and can be Drive Right or Drive Left.
    • Metal to metal contact points on both the Drive and Idle sides of the shade ensure a sturdy and reliable connection to the brackets.
    • Available with our own line of fabrics, or Mermet® and Phifer® fabrics. Visit inpro-shades.com to view fabric options, and other options and accessories, including Regular or Reverse Roll and various Hembar styles and Drive Chain Colors.
    • Construction Documents for this system and others available at inpro-shades.com.



    Technical Documents:

    H200 Solomount TECHNICAL DATA SHEET
    Additional Information:

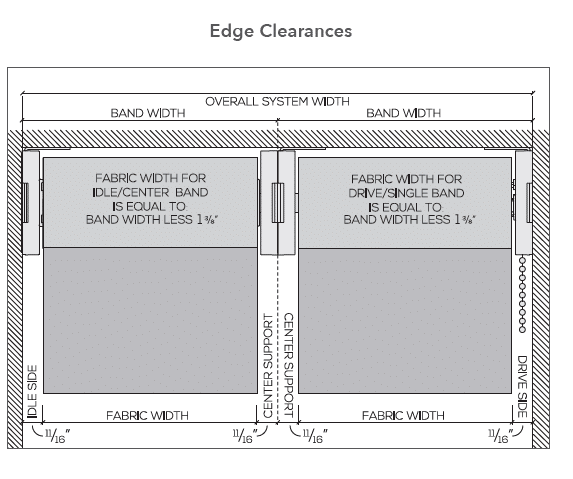

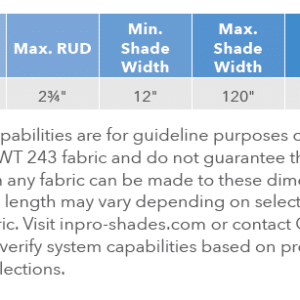

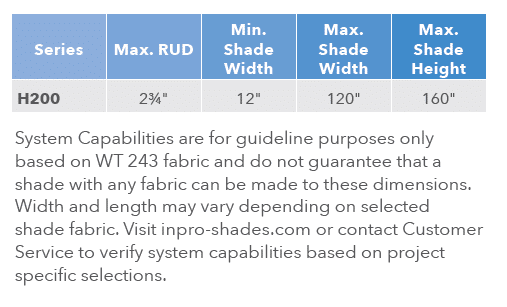

    System Capabilities are for guideline purposes only based on WT 243 fabric and do not guarantee that a shade with any fabric can be made to these dimensions. Width and length may vary depending on selected shade fabric.
    Contact Customer Service to verify system capabilities based on project specific selections.
    Product Attributes:

    Safety Rating: ANSI/WCMA Compliant
    Shade System: H200 SoloMount®
    Fabric Type: Our own line of Fabrics, Mermet Fabrics or Phifer Sheerweave Fabrics
    Fascia: 3.5″ Front and/or Rear Fascia in five colors
    Roll Type: Regular or Reverse Roll
    Bracket: SoloMount® Brackets in White (-10) or Black (-90)
    Operator: Clutch, Drive Right or Drive Left
    Width: 12″ min; 120″ max
    Length: 160″ max
    Shade Pocket:     Optional; 5″ x 5″
    Light Blocking Acc.:     Side channel, Sill channel, or Light stop angle
    Hembars:     Sealed Hembar shown, alternate styles and colors available

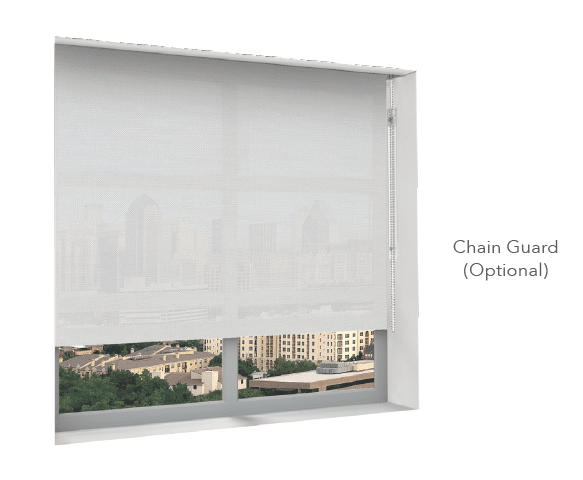

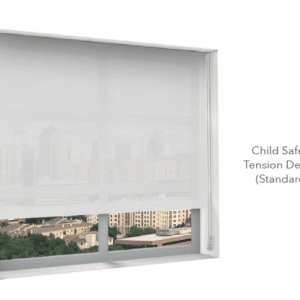

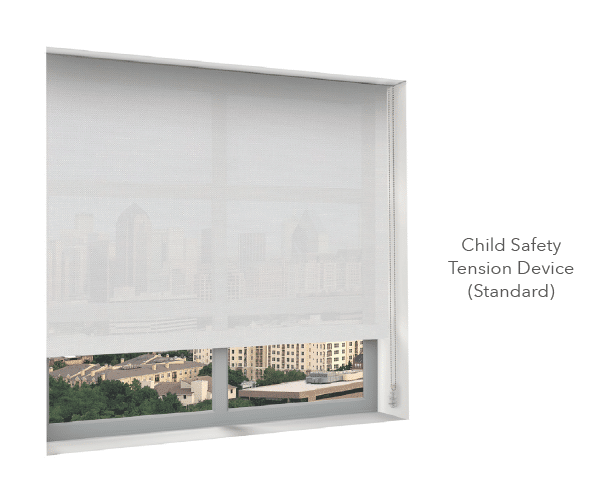

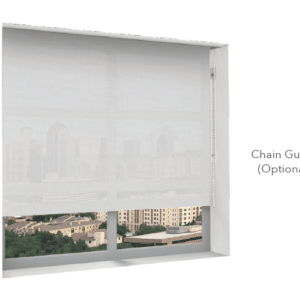

    Safety Device: Child Safety Tension Device (ANSI/WCMA A100.1-2022 compliant.) Optional compliant Chain Guard available.
    Chain Selection:     Stainless Steel shown, alternate styles and colors available
