    Guide Cable Kit

    Log-in to build a quote

    No account, no problem! You can create an account on the next page.

    Part Numbers: CKGW
    Material    :     Components w/ Stainless Steel Cable
    Color: End caps included in white and black
    Shade System: Clutch + Motorized Shades
    Guide System: Yes
    Length: 20’ lengths of cable

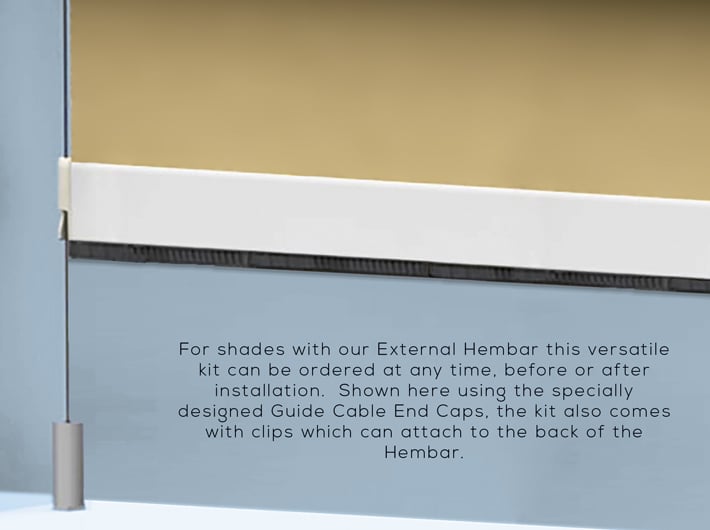

    Our low-profile Guide Cable Kit provides a discreet solution for sloped windows, and can be installed along the sides or up the back of any shade with our External Hembar. This versatile kit can be ordered at any time, before or after installation, and comes with two ways to attach the cable to the Hembar.



    Technical Documents:
    Shading System Compatibility:

    • Clutch and Motorized Shading Systems; all Hembars.
    • Note: Can be ordered at any time and retrofit to any shade system. Combine as many as necessary!

    Product Attributes:

    • Content: Aluminum Alloy
    • Can be ceiling or wall/jamb mounted using the provided bracket clips.

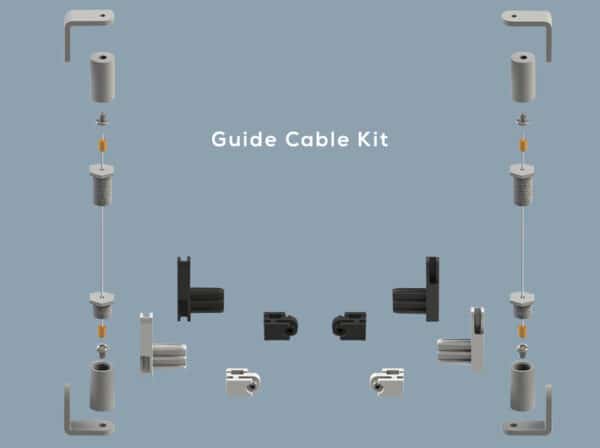

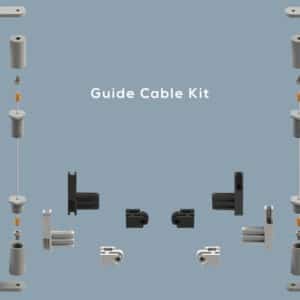

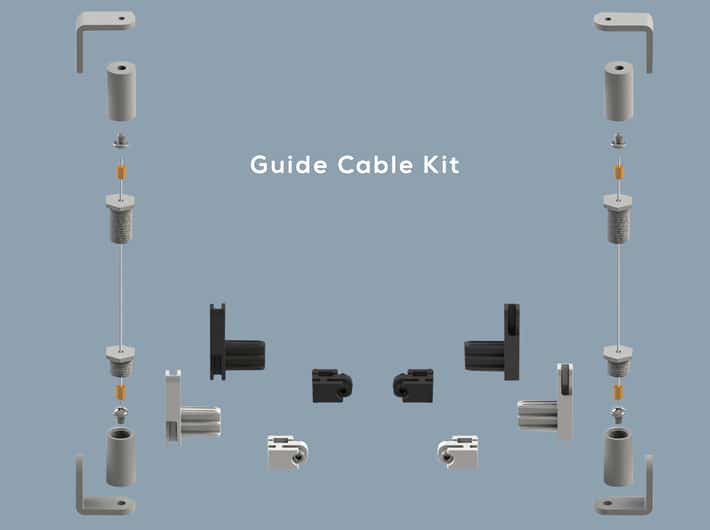

    Kit contains:

    • Two (2) pairs of Barrels and Studs for mounting (1” and 1/2”)

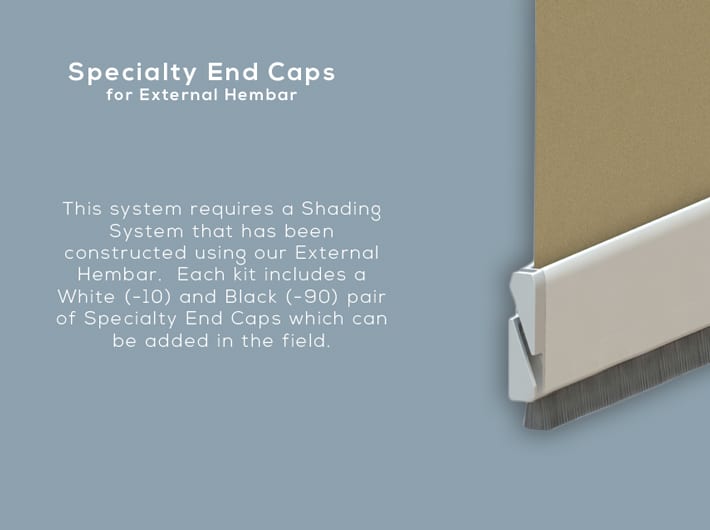

    • Two (2) pairs (white & black) of Guide Cable End Caps for External Hembar for side mounting cables.
    • Two (2) pairs (white & black) of Guide Cable Clips for External Hembar for back mounting cables.
    • Two (2) 20’ lengths of Stainless Steel Cable.

    View Data Sheets
